Quick answer: What is the Hammer Miner Thor X1?
The Hammer Miner Thor X1 is a compact WiFi-connected SHA-256 home Bitcoin miner built around Bitmain’s BM1373 ASIC. It runs three profiles from approximately 2.1 TH/s at 22W to 3.22 TH/s at 46W, includes a color mining display, and is powered by an included 65W USB-C supply. It is designed for a desk, home office, workshop, classroom, or low-power solo-mining setup.

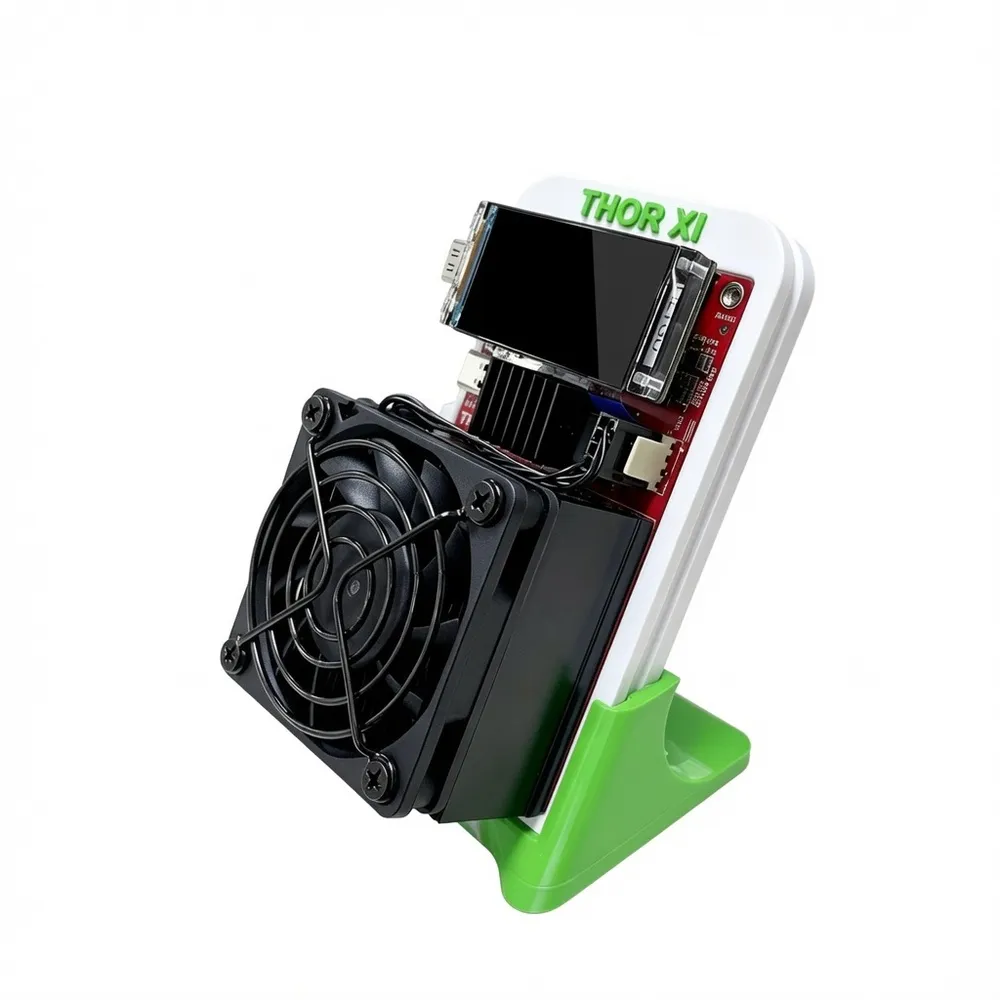

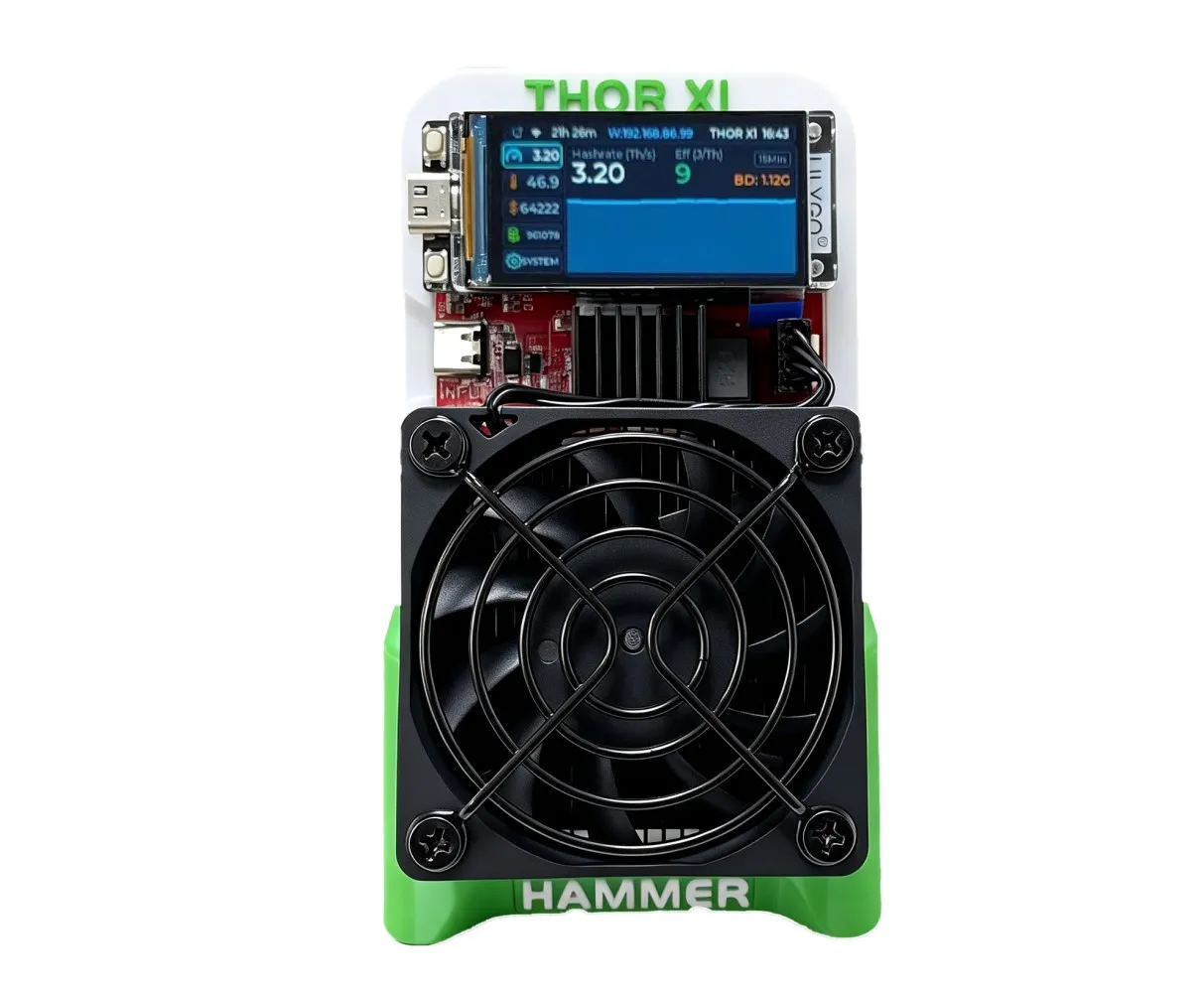

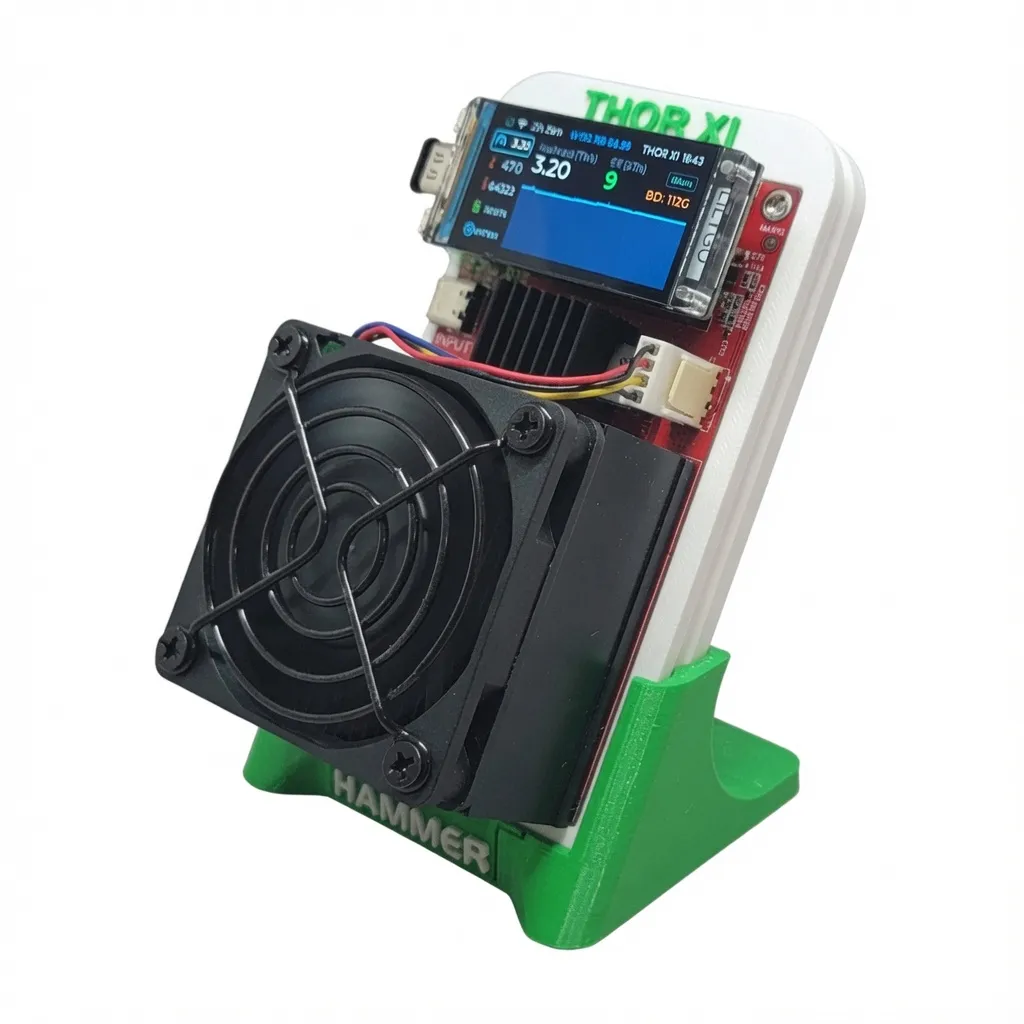

Hammer Miner Thor X1 3.2 TH/s Home Bitcoin Miner
The Thor X1 brings meaningful SHA-256 hashrate into a small desktop format without the electrical work, industrial noise, or several-hundred-watt load of a full-size ASIC. Connect the supplied USB-C power adapter, join a 2.4GHz WiFi network, enter your Bitcoin mining pool information, and monitor performance from the miner’s screen and local interface.
Its newest-generation BM1373 ASIC is tuned for efficiency. Low Power mode targets approximately 2.1 TH/s at only 22W, while Overclock mode reaches approximately 3.22 TH/s at 46W. That range lets you choose whether your room needs the quietest operation, the best balance, or maximum available hashrate.
Why choose the Thor X1?
- Up to 3.22 TH/s: real SHA-256 Bitcoin mining performance from a compact desktop miner.
- 22–46W operating range: far below the power demand of industrial ASIC miners.
- As low as 10.6 J/TH: efficient low-power tuning based on the BM1373 chip.
- Three performance profiles: select Low Power, Normal, or Overclock mode.
- Built-in color display: see hashrate, efficiency, temperature, fan speed, shares, pool data, and configuration details.
- USB-C power: the included 65W supply keeps deployment simple.
- 2.4GHz WiFi: configure and monitor the miner over your local network.
- Desktop-friendly acoustics: published figures range from approximately 34 to 51 dB depending on profile.
- Complete package: miner, stand, USB-C power supply, and both US/Canada and EU cords are included.
Thor X1 hashrate, power, efficiency, and noise
The Thor X1 is not locked to one operating point. Published profile figures are targets rather than guarantees; actual results can vary with firmware, ambient temperature, WiFi conditions, chip quality, fan behavior, and user configuration.
Low Power
- Hashrate: about 2.1 TH/s
- Power: about 22W
- Efficiency: about 10.6 J/TH
- Clock: 300MHz at 925mV
- Noise: about 34 dB
Normal
- Hashrate: about 2.7 TH/s
- Power: about 34W
- Efficiency: about 12.6 J/TH
- Clock: 400MHz at 950mV
- Noise: about 44 dB
Overclock
- Hashrate: about 3.22 TH/s
- Power: about 46W
- Efficiency: about 14.2 J/TH
- Clock: 470MHz at 1000mV
- Noise: about 51 dB
Higher settings produce more heat and noise. Keep the fan intake and exhaust clear, use the supplied power system, and confirm stable temperatures after changing profiles.
Built-in Bitcoin mining dashboard

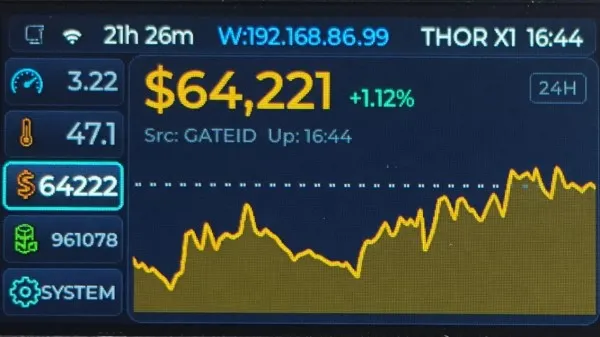

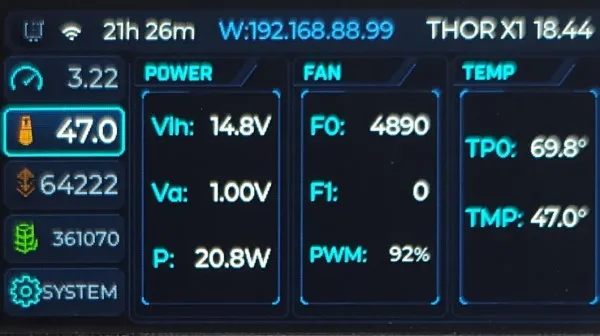

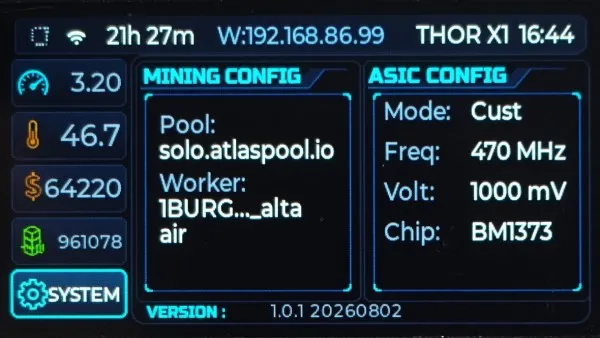

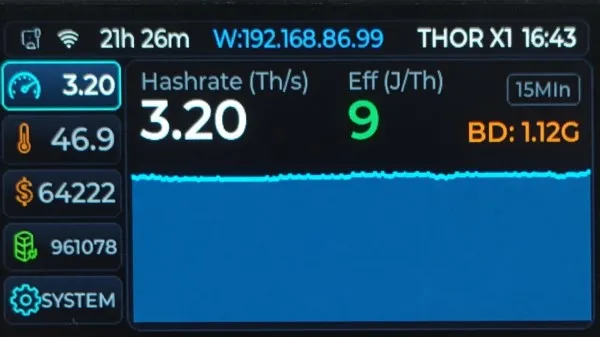

The Thor X1’s color display puts useful mining data directly on the device. Available screens show live hashrate, J/TH efficiency, temperature, accepted shares, current pool, best difficulty, Bitcoin price, uptime, voltage, frequency, fan speed, power draw, network address, and ASIC configuration.

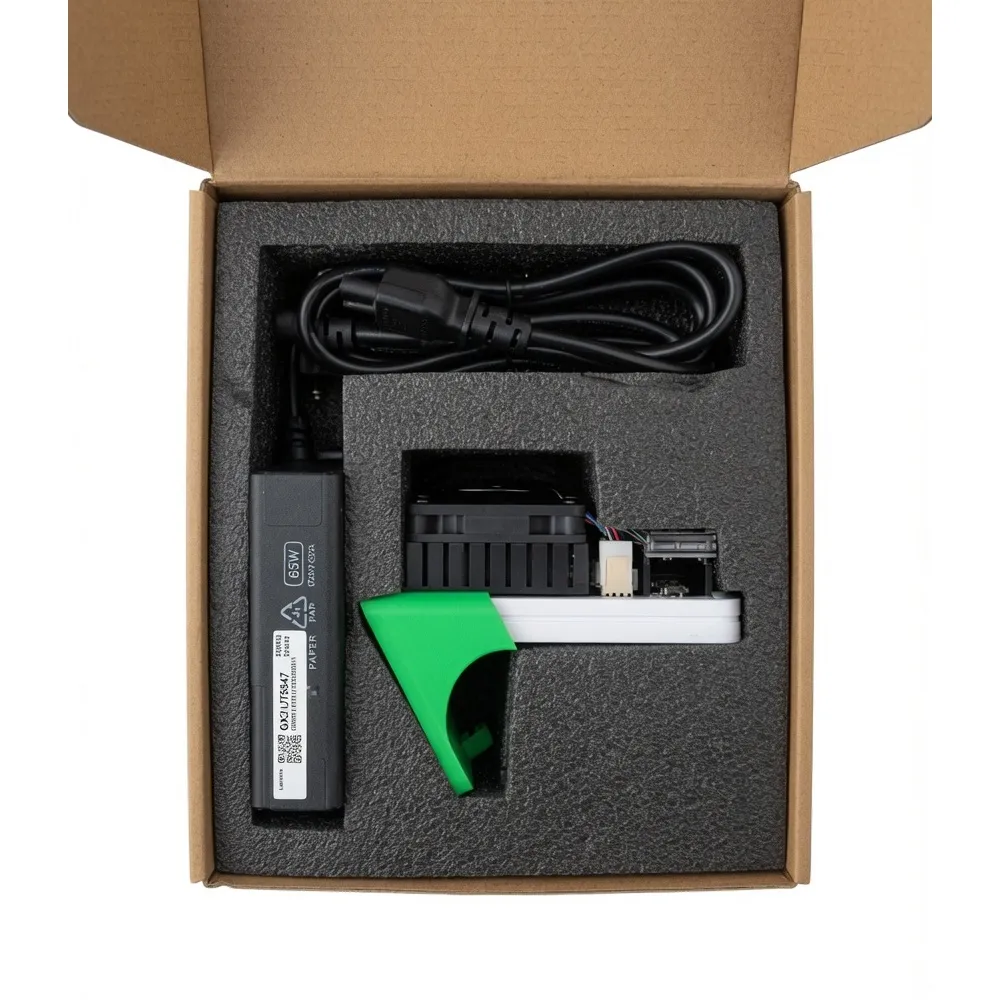

What’s included
- Hammer Miner Thor X1 desktop Bitcoin miner

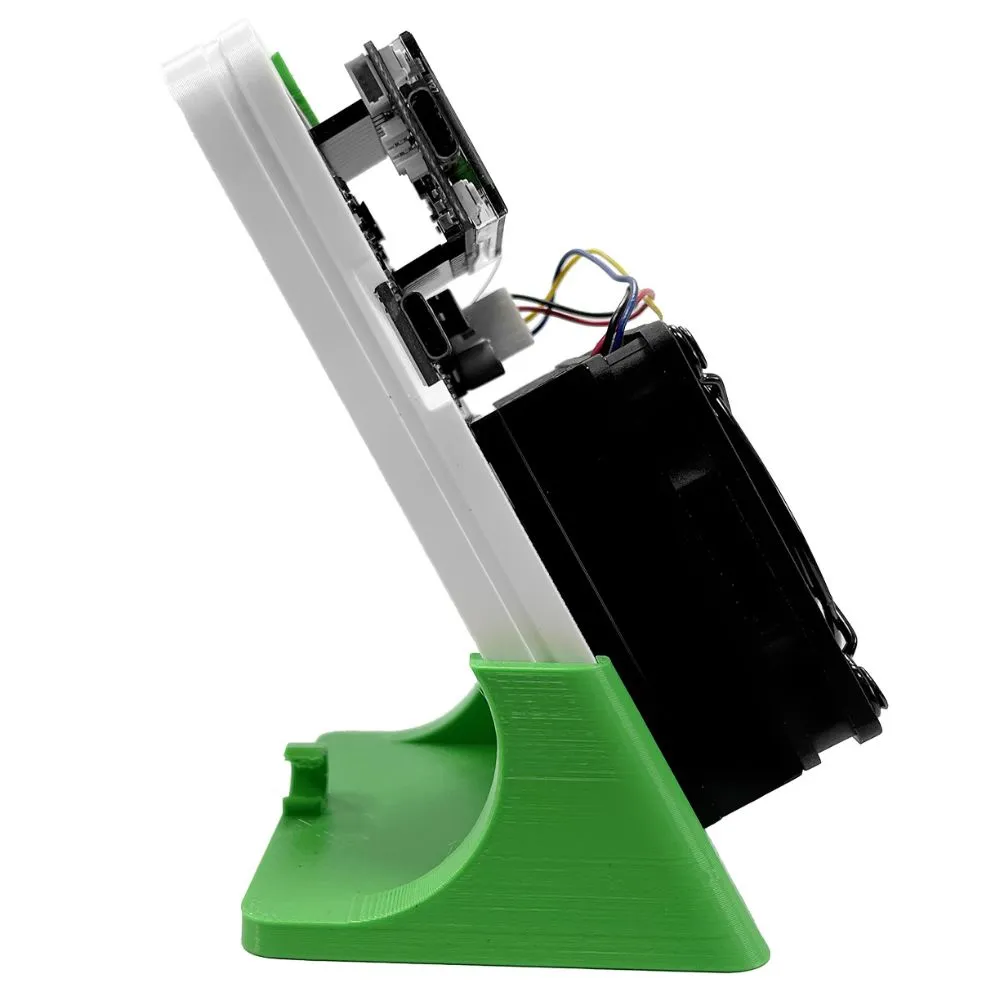

- Purpose-built desktop stand

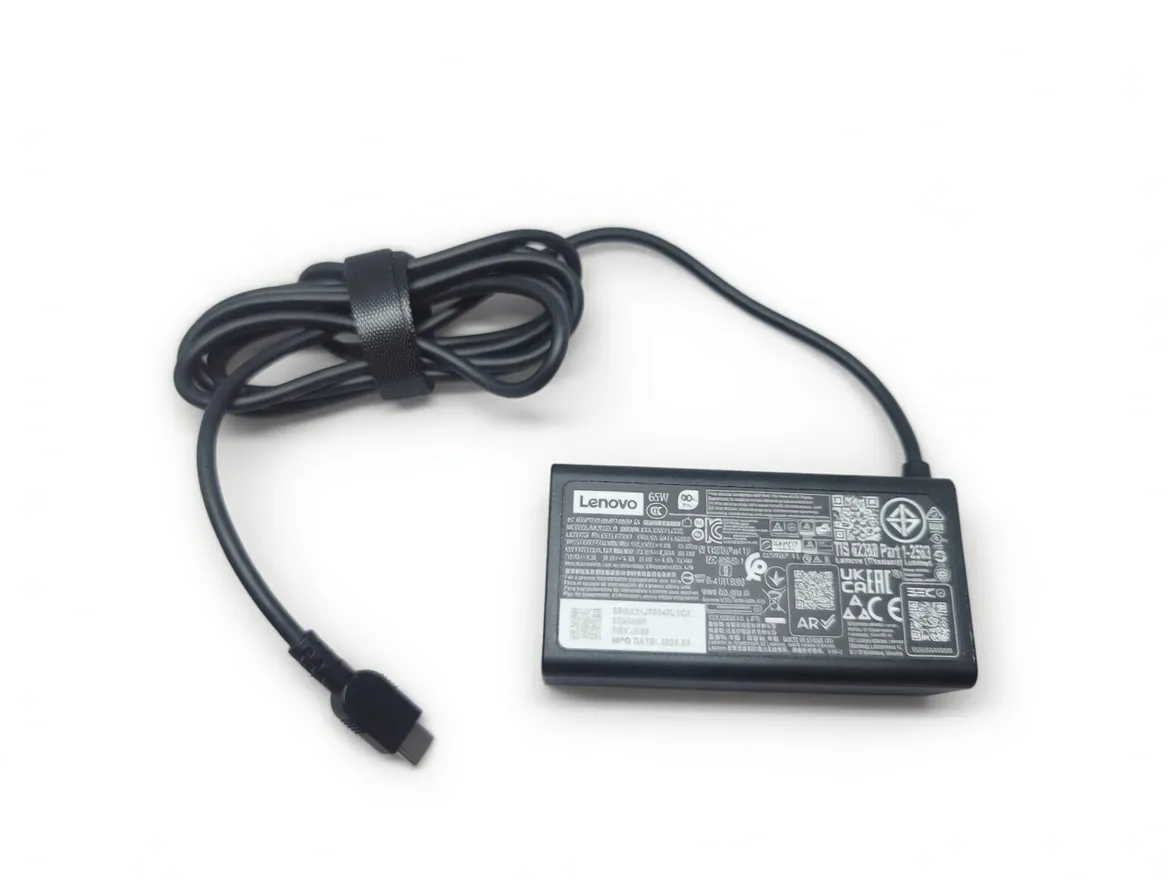

- 65W USB Type-C power supply
- NEMA 5-15P power cord for the United States and Canada
- CEE 7/7 EU power cord
You still need: a 2.4GHz WiFi network, a compatible Bitcoin mining pool or solo-pool destination, and a Bitcoin payout address or pool account as required by your chosen service.
Thor X1 specifications
| Manufacturer | Hammer Miner |
|---|---|
| Model | Thor X1 |
| Algorithm | SHA-256 for Bitcoin |
| ASIC chip | Bitmain BM1373 |
| Hashrate | Approximately 2.1–3.22 TH/s depending on mode |
| Power | Approximately 22–46W depending on mode |
| Efficiency | Approximately 10.6–14.2 J/TH depending on mode |
| Noise | Approximately 34–51 dB depending on mode |
| Connectivity | 2.4GHz WiFi |
| Power input | USB-C via included 65W supply |
| Cooling | Active air cooling |
| Display | Integrated color mining-status screen |
| Condition | Brand new |
| Shipping weight | Approximately 5 lb |
| Shipping dimensions | Approximately 10 × 8 × 6 in |
Thor X1 vs other CryptoCloaks home Bitcoin miners
The Thor X1 is for buyers who value new-chip efficiency and very low power draw more than raw hashrate per dollar. It sits above entry-level single-chip miners but below larger multi-chip desktop systems.
- Choose the Thor X1 for BM1373 efficiency, three power modes, a polished color display, USB-C simplicity, and up to 3.22 TH/s.
- Choose the Hammer Miner BC01 when lower purchase price matters more than maximum hashrate.
- Choose the Hammer Miner BC04 when you want more hashrate and Ethernet at a higher power draw.
- Choose the Hammer Miner BC08 for a larger jump to approximately 12 TH/s.
- Choose the GekkoScience KBox for an enclosed all-in-one system with Ethernet, integrated AC power, and up to 22 TH/s.
Hammer Miner Thor X1 setup
- Place the miner and stand on a stable surface with open airflow around the fan and electronics.
- Connect the included 65W USB-C power supply and the correct regional power cord.
- Power on the Thor X1 and join a 2.4GHz WiFi network.
- Open the miner’s local configuration interface from a device on the same network.
- Enter your Bitcoin pool or solo-pool URL, worker name, and payout information as required.
- Start with Low Power or Normal mode and confirm stable hashrate, temperature, fan speed, and accepted shares.
- Use Overclock mode only with adequate airflow and careful temperature monitoring.
Firmware resources are maintained by Hammer Miner at the official Hammer Miner GitHub organization. Use only firmware intended for the exact Thor X1 hardware revision.
Hammer Miner Thor X1 FAQ
How much hashrate does the Thor X1 produce?
Published targets are approximately 2.1 TH/s in Low Power mode, 2.7 TH/s in Normal mode, and 3.22 TH/s in Overclock mode. Actual results vary with configuration and operating conditions.
How much power does the Thor X1 use?
Published figures are approximately 22W on Low Power, 34W on Normal, and 46W on Overclock. The package includes a 65W USB-C power supply.
How efficient is the Thor X1?
The lowest-power profile is rated at approximately 10.6 J/TH. Normal and Overclock targets are approximately 12.6 and 14.2 J/TH.
How loud is the Hammer Miner Thor X1?
Published figures are approximately 34 dB on Low Power, 44 dB on Normal, and 51 dB on Overclock. Room acoustics, distance, fan condition, and ambient temperature affect perceived noise.
Does the Thor X1 include a power supply?
Yes. The package includes a 65W USB-C power supply plus NEMA 5-15P and CEE 7/7 power cords.
Does the Thor X1 support WiFi?
Yes. It connects to 2.4GHz WiFi for configuration and mining. It is not listed as an Ethernet miner.
Can the Thor X1 mine Bitcoin?
Yes. The BM1373 ASIC performs SHA-256 hashing used for Bitcoin mining. You must configure a compatible pool or solo-pool destination.
Can I solo mine with the Thor X1?
Yes. You can configure a compatible solo-pool endpoint, but finding a Bitcoin block is probabilistic and never guaranteed.
Can I use the Thor X1 as a heater?
Like nearly all miners, its electrical input becomes room heat. At 22–46W it produces gentle localized heat, not the output of a conventional space heater.
Is overclocking supported?
The published Overclock profile targets approximately 3.22 TH/s at 46W. Higher settings increase heat and fan noise, so maintain clear airflow and monitor temperatures.
What comes in the Thor X1 box?
The package includes the miner, desktop stand, 65W USB-C power supply, a US/Canada NEMA 5-15P cord, and a CEE 7/7 EU cord.
Is Bitcoin mining with the Thor X1 profitable?
Profitability changes with Bitcoin price, network difficulty, pool terms, uptime, electricity cost, and selected power mode. CryptoCloaks does not promise a fixed return or a block result.
