Route Whatsminer exhaust without removing the stock fan screws
This PETG shroud slips over the compatible stock Whatsminer exhaust-fan housing and gives the main ASIC heat a single duct connection. Select either a 6-inch or 8-inch outlet and your preferred printed color.
Check the fit before ordering: Compare your Whatsminer’s stock exhaust-fan housing with the product photos. Because chassis and fan-housing revisions vary, send CryptoCloaks your exact model and a clear exhaust-side photo if the housing does not match.
A simpler main-exhaust connection
Slip-on installation
Integrated clips attach over the compatible stock housing without removing the fan screws.
Two outlet choices
Select 6-inch for an existing 6-inch route or 8-inch for more duct area in a new high-volume setup.
Printed in PETG
Designed and printed by CryptoCloaks in Colorado for the warm exhaust side of Bitcoin mining hardware.
Specifications and ordering choices
| Miner family | Whatsminer units with the compatible stock exhaust-fan housing shown in the product photos |
|---|---|
| Duct options | 6-inch or 8-inch round outlet |
| Material | PETG |
| Mounting | Integrated slip-on clips; no stock fan-screw removal |
| Heat path | Main ASIC exhaust only; this is not the PSU Capture product |
| Included | One selected slip-on exhaust shroud; duct, clamp, and hose are not included |
Install in three steps
Shut down and unplug the miner. Let the exhaust-side housing cool before installation.

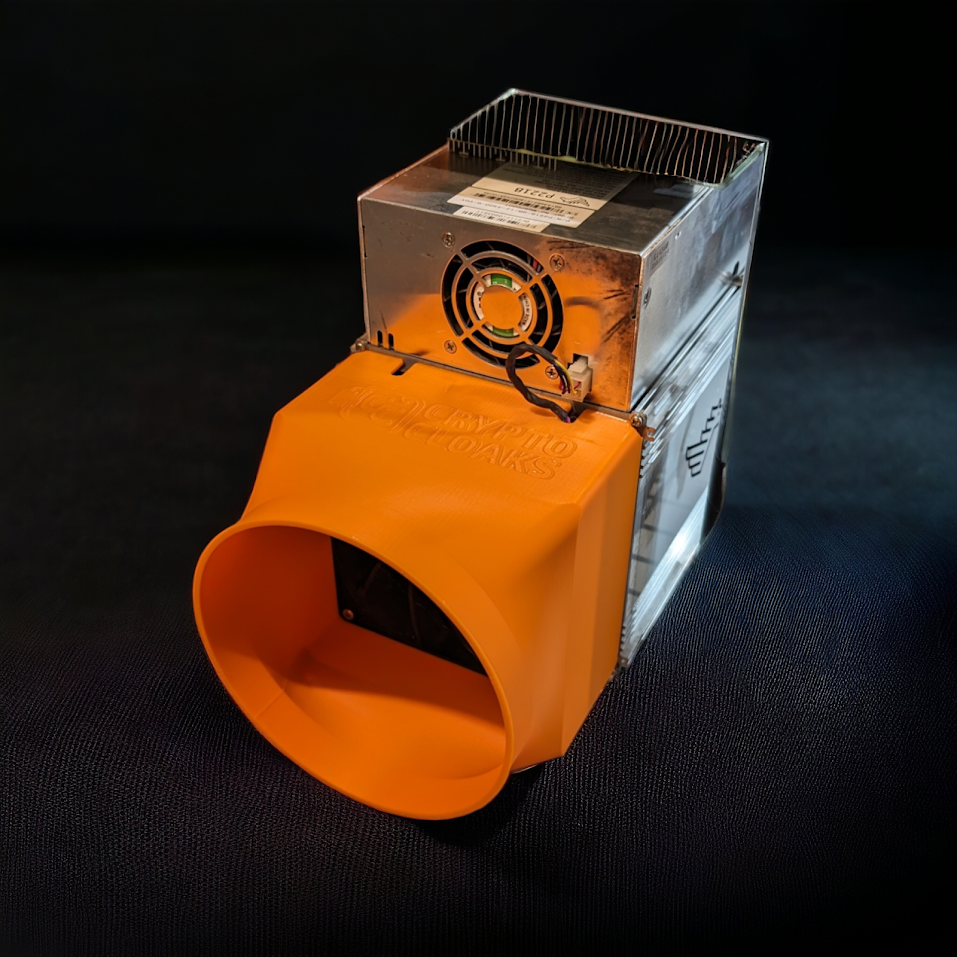

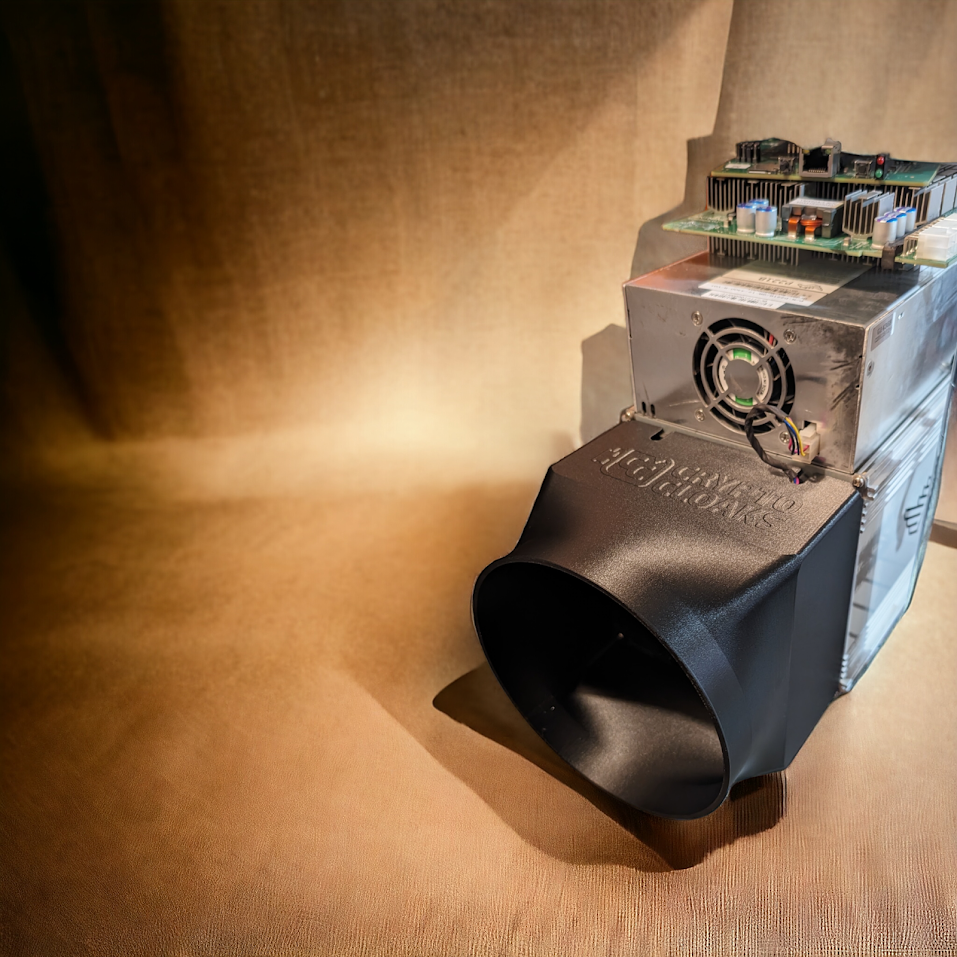

Align the shroud with the matching stock exhaust-fan housing and press evenly until the clips engage.
Attach the selected duct size, restart the miner, and confirm secure fit, unobstructed airflow, and normal temperatures.
Watch the slip-on installation
The original shop video shows how the retaining clips engage the stock fan housing.
Frequently asked questions
Does this capture the PSU exhaust?
No. This page is for the slip-on main ASIC exhaust shroud. The separate PSU Capture product serves a different heat path.
How do I choose 6-inch or 8-inch?
Match your existing duct system. For a new setup, 8-inch provides more duct area, but total performance still depends on duct length, bends, restrictions, and external fans.
Do I remove the stock fan screws?
No. This design clips over the compatible stock exhaust-fan housing.
What if I am unsure about fit?
Do not guess from the brand alone. Compare the housing to the photos or send CryptoCloaks the exact model and an exhaust-side photo through support.
Installation note: Never work on an energized miner. Do not force the clips, obstruct the fan opening, or operate with collapsed or sharply restricted ducting. Monitor temperatures after installation.
Comparing Antminer, Whatsminer, and Avalon Q?
Use the CryptoCloaks ASIC Shroud Finder to choose by miner family, fan configuration, and duct diameter.
